Cold Rolled Non Grain Oriented CRNGO M36 Silicon Steel Coil

Brand Name : Baosteel

Model Number : 50W800, 50W600, 50W470, 35W470

Place of Origin : Shanghai, China

MOQ : 500kg

Price : $1.5/kg ; $1450/Ton

Payment Terms : L/C, T/T

Delivery Time : 15-21 days

Packaging Details : Fine packing as required

Material : Non-Oriented Silicon Steel

Technique : Cold rolled

Thickness : 0.2 - 0.65 mm

Standard : AISI,ASTM,BS,DIN,GB,JIS

Tolerance : Min width tolerance ±0.01

Processing : Decoiling, Cutting

Application : Transformer Core

Steel shape : Steel Coil Crngos

Width : 50-1250mm or Requests

Payment Term : L/C T/T (30% Deposit)

Contact Now

The relationship between non-oriented silicon steel sheet and oriented silicon steel sheet:
1. Both are cold-rolled silicon steel, but the silicon content is different. The silicon content of cold-rolled non-oriented silicon steel sheet is 0.5%-3.0%, and the silicon content of cold-rolled oriented silicon steel sheet is above 3.0%.
2. Differences in production process and performance: non-oriented silicon steel sheet has relatively lower technological requirements than oriented silicon steel sheet.
3. Performance and use: Due to the different performance characteristics of the two, there are differences in the direction of use. The most important use of cold-rolled non-oriented silicon steel sheet is for the manufacture of generators, so it is also called cold-rolled motor silicon steel. The main purpose of cold-rolled oriented silicon steel strip is for transformer manufacturing, so it is also called cold-rolled transformer silicon steel.

Non-Oriented Electrical Steel is manufactured as to render magnetic properties almost uniform in any direction of the coil. Used mainly for medium and large rotating machines, and small transformers.
● Exhibits almost uniform and excellent magnetic properties in all directions of a steel sheet.
● Typical applications: motors, generators, audio transformers, reactors, magnet switches, ballasts, magnetic fields, and electromagnets for accelerators

Dimensional and Shape Tolerances
Nominal Thickness(mm) Nominal Width(mm) Flatness(%) Camber Within 2m
800~1000(0~+0.15) 0.20(±0.02) ≤2 ≤1.0
0.35(±0.03)
0.50,0.65(±0.04)
＞1000(0~+0.15) 0.20(±0.02)
0.35,0.50(±0.03)
0.65(±0.04)

A SERIES
Types Nominal Thickness(mm) Theoretical density(kg/dm³) Max. Core Loss P15/50(w/kg) Min. InductionB50(T) Min. Lamination Factor(％)
B35A210 0.35 7.6 2.1 1.62 95
B35A230 7.6 2.3 1.62 95
B35A250 7.6 2.5 1.62 95
B35A270 7.65 2.7 1.62 95
B35A300 7.65 3 1.62 95
B35A360 7.65 3.6 1.63 95
B35A440 7.7 4.4 1.64 95
B35A550 7.75 5.5 1.64 95
B50A230 0.5 7.6 2.3 1.62 96
B50A250 7.6 2.5 1.62 96
B50A270 7.6 2.7 1.62 96
B50A290 7.6 2.9 1.62 96
B50A310 7.65 3.1 1.62 96
B50A350 7.65 3.5 1.62 96
B50A470 7.65 4 1.63 96
B50A600 7.7 4.7 1.64 96
B50A700 7.75 6 1.66 96
B50A800 7.8 7 1.7 96
B50A1000 7.8 8 1.7 96
B50A1300 7.8 8 1.7 96
B65A470 0.65 7.85 3.7 1.7 97
B65A600 7.65 4.7 1.7 97
B65A700 7.75 4.9 1.7 97
B65A800 7.75 8 1.7 97
B65A1000 7.8 10 1.7 97
B65A1300 7.85 13 1.7 97

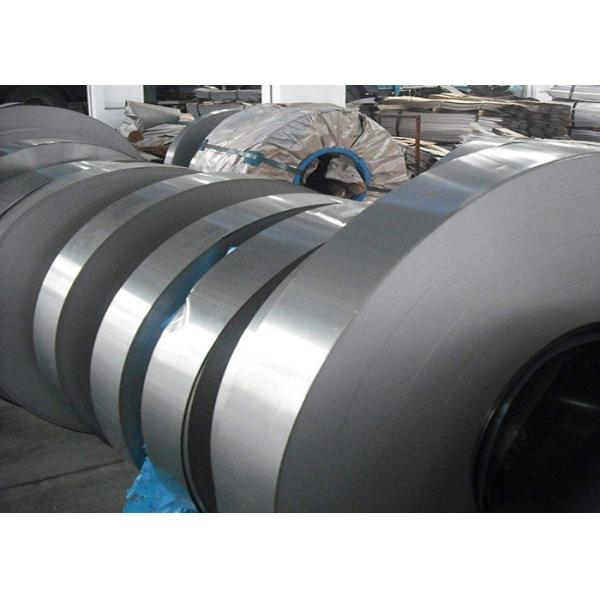

Cold Rolled Non Grain Oriented CRNGO M36 Silicon Steel Coil

Cold Rolled Non Grain Oriented CRNGO M36 Silicon Steel Coil
